AGLP 8

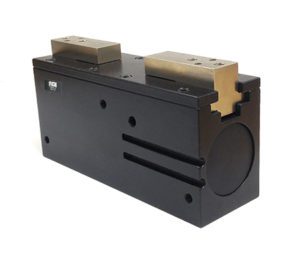

AGLP-8-1000 T-Slot Bearing Series Parallel Gripper

Features & Benefits

  • Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance.
  • Rugged rack and pinion synchronizing.
  • High gripping force to weight ratio.
  • Compact Design with long stroke.
  • True parallel jaw motion for easy tooling.
  • Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulations.
  • Piston seals are quad ring type for long service life.
  • Hall effect sensors are available to monitor open and closed positions of the jaws.
  • AGLP is fully field repairable for cost savings and minimum down time.
  • Gripper can be ordered with 3 different stroke on the same size body.

DOWNLOAD PRODUCT PDF
DOWNLOAD CAD FILE

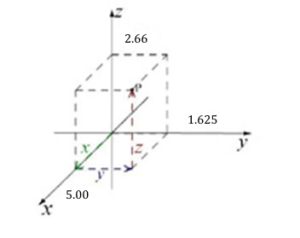

PRODUCT SPECIFICATIONS

Design: Parallel, Double Acting, Synchronized Jaws

Stroke: 1.00 in [25.4 mm]

Gripping Force @ 80 PSI [5.5 BAR]
Closing: 45 lbs [200 N]
Opening: 45 lbs [200 N]

Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]

Pressure Range:
Low/High 10-120 PSI [.7-7 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play: ± 0.001 [.03 mm]

Loading Capacity: Static – Dynamic

Max Tensile T
165lbs                                           55 lbs
[734 N]                                         [245 N]

Max Compressive C
165 lbs                                          55 lbs
[734 N]                                         [245 N]

Max Moment Mx
100 in/lb                                      33 in/lb
[11.3 Nm]                                     [3.7 Nm]

Max Moment My
125 in/lb                                      42 in/lb
[14.1 Nm]                                     [4.7 Nm]

Max Moment Mz
100 in/lb                                      33 in/lb
[11.3 Nm]                                     [3.7 Nm]

Material: High Strength,Hard Coated aluminum bronze alloys, Steel

Weight: 2 lb [.90 kg]

Piston Diameter: 1.250 in [31.7 mm]
