AGA-30 Double-Guided Low Profile Angular Gripper

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

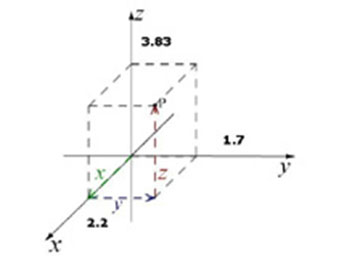

Product Specifications

Design: Angular

Stroke: 0-180° adj

Gripping Force @ 80 PSI [5.5 BAR]
Closing: 75 lbs [333 N]
Opening: 62 lbs [275 N]

Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]

Pressure Range:
Low/High 10-120 PSI [.7-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play:
± 0.001 [.03 mm]

Repeatability from Center:
± 0.002 [.06 mm]

Loading Capacity: Static – Dynamic

Max Tensile T
60 lbs 30 lbs
[266 N] [130 N]

Max Compressive C
60 lbs 30 lbs
[266 N] [130 N]

Max Moment Mx
90 in/lb 30 in/lb
[10 Nm] [3.4 Nm]

Max Moment My
140 in/lb 35 in/lb
[15.8 Nm] [4 Nm]

Max Moment Mz
90 in/lb 30 in/lb
[10 Nm] [3.4 Nm]

Material: High Strength,Hard Coated aluminum bronze alloys, Steel

Weight: 1.5 lbs [.7 kg]

Piston Diameter: 1.125 in [28.5 mm]

Features & Benefits

  • Grippers provide up to 180º of angular jaw travel allowing the jaws to completely retract from the work area eliminating another required axis of travel.
  • High gripping force to weight ratio.
  • Compact design with long stroke.
  • Jaw rotations can be adjusted from 0-90º to allow the gripper to be custom fit to each application.
  • Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulation.
  • Pistons seals are quad ring type for long service life.
  • Proximity sensors are available to monitor open and closed position of the jaws.
  • AGA is fully field repairable for cost savings and minimum down time.
  • The gripper body has two mounting surfaces with dowel pin holes to provide accurate mounting in a variety of positions.

3-D Interactive Preview
