AGE-2 Feed Escapement with built-in Air Cylinder

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download Product CAD

Product Specifications

Pneumatic Feed Escapement:

Design: Double Acting, Internal Sequencing

Stroke 1.25 in 31.7 mm

Option: Adjustable Stroke

Thrust Force: @80 psi [5.5 BAR]

Extend Force: 35 lb [15.8 Kg]

Retract Force: 33 lb [15.0 Kg]

Time: .35 Sec [.35 sec]

Pressure Range:
Low/High 20-120 PSI [1.4-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play: ± .002 in ± 0.06 mm

Loading Capacity: Static – Dynamic

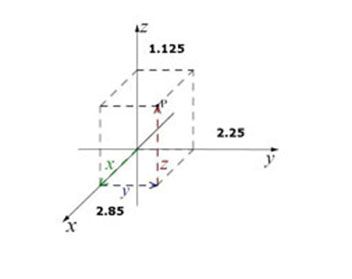

Max Moment Mx
150 lbs 13 lbs
[11.3 Nm] [2.8 Nm]

Max Moment My
150 lbs 13 lbs
[11.3 Nm] [2.8 Nm]

Max Moment Mz
150 lbs 13 lbs
[11.3 Nm] [2.8 Nm]

Features & Benefits

  • Feed Escapements - made for separating and isolating individual parts from tracks, vibratory feeders or conveyors.
  • Internal Sequencing & Cross porting - make sure both rods are extended before either rod can retract, ensuring positive part feeding.
  • Easy part jam clearing - due to internal back pressure cross port design, this allows both rods to be retracted with the air off.
  • Piston seals are U-CUP type for long service life.
  • Hall Effect sensors are available to monitor stroke position at any point in the stroke.
