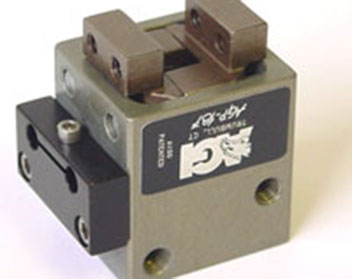

AGP-187 Double-Guided Wedge Parallel Gripper
Features & Benefits
- Jaws machined from S7 tool steel to prevent jaw breakage.
- Ultra high gripping force to weight ratio.
- Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
- Piston seals are quad ring type for long service life.
- Additional side mounting holes and side air ports for optional mounting and porting.
- Proximity switches are available to monitor open and closed position of the jaws.
- Series AGP-187 is fully field repairable for cost savings and minimum down time.
PRODUCT SPECIFICATIONS
Design: Parallel, Double Acting, Synchronized Jaws
Stroke: 0.187 ±.005 in [4.75mm]
Gripping Force @ 80 PSI [5.5 bar]:
Closing: 15 lbs [66 N]
Opening: 16 lbs [71 N]
Time:
Close: 0.15 sec [0.15 sec]
Open: 0.15 sec [0.15 sec]
Pressure Range:
20-120 PSI [1.3-8 bar]
Temperature Range:
-20°-180°F [-28°-80°C]
Side Play:
± 0.001 [0.03 mm]
Repeatability from center:
± .002 [0.06 mm]

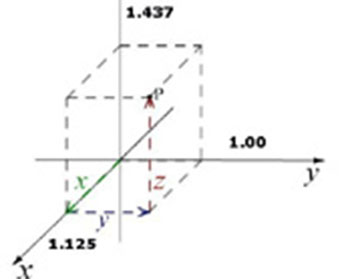

Loading Capacity: Static – Dynamic
Max Tensile T
50 lbs 7 lbs
[222 N] [31 N]
Max Compressive C
75 lbs 12 lbs
[333 N] [53 N]
Max Moment Mx
30 in/lb 5 in/lb
[3.4 Nm] [0.6 Nm]
Max Moment My
30 in/lb 5 in/lb
[3.4 Nm] [0.6 Nm]
Max Moment Mz
30 in/lb 5 in/lb
[3.4 Nm] [0.6 Nm]
Material: High Strength, Hard Coated aluminum bronze alloys, Steel
Weight: 3 oz. [85 g]
Piston Diameter: 0.75 in [19 mm]
