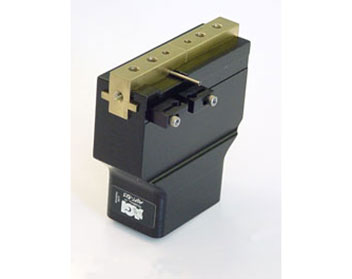

AGPT-1125 T-Slot Bearing Series

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

Product Specifications

Design: Parallel, Double Acting, Synchronized Jaws

Stroke: 1.125 in [28.6 mm]

Gripping Force Per Jaw @ 80 PSI [5.5 BAR]
Closing: 30 PSI [133 N]
Opening: 27 PSI [120 N]

Time:
Close: 0.20 sec [0.20 sec]
Open: 0.20 sec [0.20 sec]

Pressure Range:
Low/High 10-120 PSI [.7-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play:
± 0.001 [.03 mm]

Repeatability from Center:
± 0.001 [.03 mm]

Loading Capacity: Static – Dynamic

Max Tensile T
100 lbs 30 lbs
[444 N] [133 N]

Max Compressive C
100 lbs 30 lbs
[444 N] [133 N]

Max Moment Mx
200 in/lb 25 in/lb
[22.6 Nm] [5.6 Nm]

Max Moment My
250 in/lb 30 in/lb
[28 Nm] [6.7Nm]

Max Moment Mz
200 in/lb 25 in/lb
[22.6 Nm] [5.6 Nm]

Material: High Strength,Hard Coated aluminum bronze alloys, Steel

Weight: 1 lb. [.5 kg]

Piston Diameter: 1.00 in [25.4 mm]

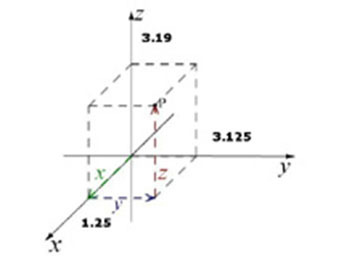

Features & Benefits

  • Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance.
  • High gripping force to weight ratio.
  • True parallel jaw motion for easy tooling.
  • Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
  • Piston seals are quad ring type for long service life.
  • Proximity switches are available to monitor open and closed position of the jaws.
  • Series AGLP-1125 are fully field repairable for cost savings and minimum down time.
  • Shielded design for long service life.
