AGPT-500 T-Slot Bearing Series

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

Product Specifications

Design: Parallel, Double Acting, Synchronized Jaws

Stroke: 0.50 in [12.7 mm]

Gripping Force Per Jaw @ 80 PSI [5.5 BAR]
Closing: 10 PSI [44 N]
Opening: 12 PSI [53 N]

Time:
Close: 0.12 sec [0.12 sec]
Open: 0.12 sec [0.12 sec]

Pressure Range:
Low/High 10-120 PSI [.7-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play:
± 0.001 [.03 mm]

Repeatability from Center:
± 0.002 [.06 mm]

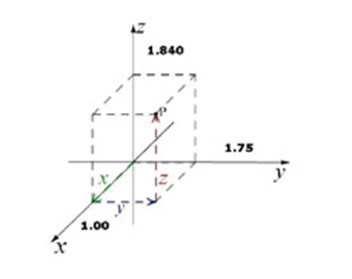

Loading Capacity: Static – Dynamic

Max Tensile T
50 lbs 15 lbs
[222 N] [66.7 N]

Max Compressive C
50 lbs 15 lbs
[222 N] [66.7 N]

Max Moment Mx
50 in/lb 12 in/lb
[5.6 Nm] [1.3 Nm]

Max Moment My
60 in/lb 15 in/lb
[6.7 Nm] [1.7 Nm]

Max Moment Mz
50 in/lb 12 in/lb
[5.6 Nm] [1.3 Nm]

Material: High Strength,Hard Coated aluminum bronze alloys, Steel

Weight: 5 oz [142 g]

Piston Diameter: 0.625 in [15.8 mm]

Features & Benefits

Jaws are T-Slot bearing supproted to prevent jaw breakage and offer superior load bearing performance. High gripping force to weight ratio. Compact design with long stroke. True parallel jaw motion for easy tooling.
  • Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
  • Piston seals are quad ring type for long service life.
  • Proximity switches are available to monitor open and closed position of the jaws.
  • Series AGLP-500 are fully field repairable for cost savings and minimum down time.
  • Linkage is guided in the body for precise center repeatibility.

3-D Interactive Preview
