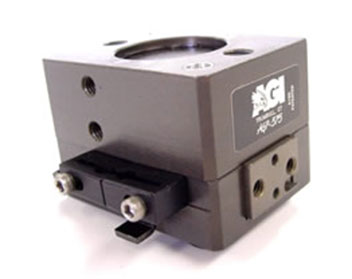

AGP-375 Double-Guided Wedge Parallel Gripper
Features & Benefits
- Ultra high gripping force to weight ratio.
- True parallel jaw motion for easy tooling.
- Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
- Piston seals are quad-ring type for long service life.
- Additional side mounting holes and side air ports for optional mounting and porting.
- Proximity switches are available to monitor open and closed position of the jaws.
- Series AGP-375 is fully field repairable for cost savings and minimum down time.
PRODUCT SPECIFICATIONS
Design: Parallel, Double Acting, Synchronized Jaws
Stroke: 0.375 in [9.5 mm]
Gripping Force @ 80 PSI [5.5 bar]:
Closing: 20 lbs [89 N]
Opening: 22 lbs [97 N]
Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]
Pressure Range:
30-120 PSI [2-8 bar]
Temperature Range:
-20°-180°F [-28°-80°C]
Side Play:
± 0.001 [0.03 mm]
Repeatability from center:
± .002 [0.06 mm]

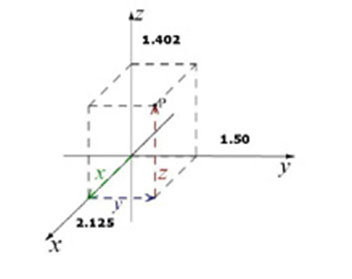

Loading Capacity: Static – Dynamic
Max Tensile T
200 lbs 25 lbs
[889 N] [111 N]
Max Compressive C
400 lbs 25 lbs
[1780 N] [111 N]
Max Moment Mx
150 in/lb 25 in/lb
[17 Nm] [2.8 Nm]
Max Moment My
150 in/lb 25 in/lb
[17 Nm] [2.8 Nm]
Max Moment Mz
150 in/lb 25 in/lb
[17 Nm] [2.8 Nm]
Material: High Strength, Hard Coated aluminum bronze alloys, Steel
Weight: 7 oz. [198 g]
Piston Diameter: 1.00 in [25.4 mm]
