AGW-250-2 Wide Body Series Parallel Gripper 1.500″ Stroke

Features & Benefits

  • Ultra high gripping force to weight ratio due to four opposing independent pistons that direct power to the jaws.
  • True parallel jaw motion for easy tooling.
  • Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
  • Piston seals are quad-ring type for long service life.
  • Large jaw support shafts are guided through the full width of the main body.
  • Proximity switches are available to monitor open and closed position of the jaws.
  • Series AGW-250 is fully field repairable for cost savings and minimum down time.
  • Non-synchronous versions allow the gripper’s jaws to comply to the part’s centerline versus the gripper’s centerline.

DOWNLOAD PRODUCT PDF
DOWNLOAD CAD FILE

PRODUCT SPECIFICATIONS

Design: Parallel, Double Acting, Synchronized Jaws

Stroke: 1.50 in [38.1 mm]

Thrust Force @ 80 PSI [5.5 BAR]
Closing: 20 lbs [89 N]
Opening: 26 lbs [115 N]

Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]

Pressure Range:
Low/High 20-120 PSI [1.7-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play:
± 0.001 [.03 mm]

Repeatability from Center:
± 0.002 [.06 mm]

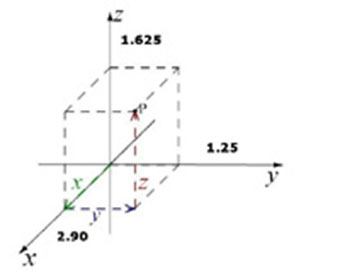

Loading Capacity: Static – Dynamic

Max Tensile T
50 lbs 10 lbs
[230 N] [44.5 N]

Max Compressive C
50 lbs 10 lbs
[230 N] [44.5 N]

Max Moment Mx
100 in/lb 20 in/lb
[11.3 Nm] [2.3 Nm]

Max Moment My
150 in/lb 30 in/lb
[17 Nm] [3.4Nm]

Max Moment Mz
100 in/lb 20 in/lb
[11.3 Nm] [2.3 Nm]

Material: High Strength,Hard Coated aluminum bronze alloys, Steel

Weight: 11 oz [311 g]

Piston Diameter:
.500 in x 4 [12.7 mm]
