AGA-40 Double-Guided Low Profile Angular Gripper

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

Product Specifications

Design: Angular

Stroke: 0-180° adj

Gripping Force @ 80 PSI [5.5 BAR]
Closing: 180 lbs [800 N]
Opening: 168 lbs [747 N]

Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]

Pressure Range:
Low/High 10-120 PSI [.7-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play:
± 0.001 [.03 mm]

Repeatability from Center:
± 0.002 [.06 mm]

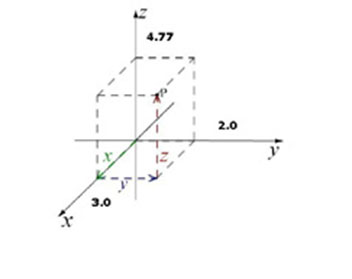

Loading Capacity: Static – Dynamic

Max Tensile T
90 lbs 40 lbs
[400 N] [177 N]

Max Compressive C
90 lbs 40 lbs
[400 N] [177 N]

Max Moment Mx
150 in/lb 430 in/lb
[17 Nm] [4.5 Nm]

Max Moment My
180 in/lb 45 in/lb
[20.3 Nm] [5 Nm]

Max Moment Mz
150 in/lb 40 in/lb
[17 Nm] [4.5 Nm]

Material: High Strength,Hard Coated aluminum
bronze alloys, Steel

Weight: 2.25 lbs [1 kg]

Piston Diameter: 1.5 in [38 mm]

Features & Benefits

  • Grippers provide up to 180º of angular jaw travel allowing the jaws to completely retract from the work area eliminating another required axis of travel. High gripping force to weight ratio.
  • Compact design with long stroke.
  • Jaw rotations can be adjusted from 0-90º to allow the gripper to be custom fit to each application.
  • Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulation.
  • Pistons seals are quad ring type for long service life.
  • Proximity sensors are available to monitor open and closed position of the jaws.
  • AGA is fully field repairable for cost savings and minimum down time.
  • The gripper body has two mounting surfaces with dowel pin holes to provide accurate mounting in a variety of positions.
