AGA-53 Angular Gripper – 180° Three Jaw

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

Product Specifications

Design: 3-Jaw Angular

Stroke: 0-180° Adjustable

Gripping Force @ 80 PSI [5.5 BAR]
Closing: 200 lbs [888 N]
Open: 170 lbs [758 N]

Time:
Close: 0.4 sec [0.4 sec]
Open: 0.4 sec [0.4 sec]

Pressure Range:
Low/High 10-120 PSI [.7-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play: ± 0.001 [.03 mm]

Repeatability from Center: ± 0.002 [.06 mm]

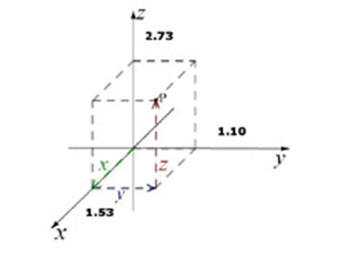

Loading Capacity: Static – Dynamic

Max Tensile T
1200 lbs – 400 lbs
[5330 N] – [1780 N]

Max Compressive C
1200 lbs – 400 lbs
[5330 N] – [1780 N]

Max Moment Mx
930 in/lb – 310 in/lb
[105 Nm] – [35 Nm]

Max Moment My
880 in/lb – 276 in/lb
[99.5 Nm] – [31.2 Nm]

Max Moment Mz
880 in/lb – 276 in/lb
[99.5 Nm] – [31.2 Nm]

Material: High Strength, Hard Coated
aluminum bronze alloys, Steel

Weight: 7.5 lb [3.4 kg]

Piston Diameter: 2.25 in [57.2 mm]

Features & Benefits

  • Grippers provide up to 180º of angular jaw travel allowing the jaws to completely retract from the work area eliminating another required axis of travel. High gripping force to weight ratio.
  • Compact design with long, adjustable stroke.
  • Jaw rotations can be adjusted from 0-90º to allow the gripper to be custom fit to each application.
  • Units are permanently lubricated for non-lube air operation, allowing for compliance with OSHA regulation.
  • Proximity sensors are available to monitor open and closed position of the jaws.
  • AGA is fully field repairable for cost savings and minimum down time. The gripper body has two mounting surfaces with dowel pin holes to provide accurate mounting in a variety of positions.

3-D Interactive Preview
