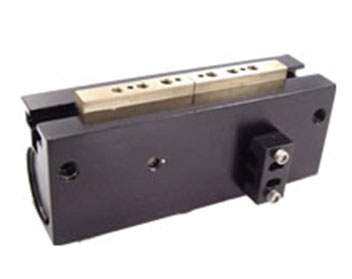

AGLP-4 T-Slot Bearing Series Parallel Gripper
Features & Benefits
- Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance.
- Rugged rack and pinion synchronizing.
- High gripping force to weight ratio.
- Compact Design with long stroke.
- True parallel jaw motion for easy tooling.
- Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulations.
- Piston seals are quad ring type for long service life.
- Hall effect sensors are available to monitor open and closed positions of the jaws.
- AGLP is fully field repairable for cost savings and minimum down time.
- Gripper can be ordered with 2 different stroke on the same size body.
PRODUCT SPECIFICATIONS
Design: Parallel, Double Acting, Synchronized Jaws
Stroke: 1.00 in [25.4 mm]
Gripping Force @ 80 PSI [5.5 BAR]
Closing: 14 lbs [62 N]
Opening: 14 lbs [62 N]
Time:
Close: 0.12 sec [0.12 sec]
Open: 0.12 sec [0.12 sec]
Pressure Range:
Low/High 10-120 PSI [.7-7 BAR]
Temperature Range:
Low/High -20°/180°F [-28°/80°C]
Side Play: ± 0.001 [.03 mm]

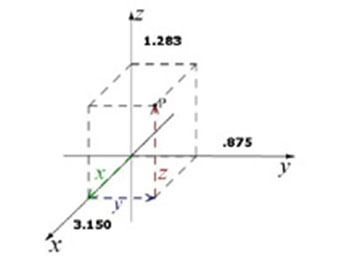

Loading Capacity: Static – Dynamic
Max Tensile T
120 lbs 40 lbs
[533 N] [177 N]
Max Compressive C
120 lbs 40 lbs
[533 N] [177 N]
Max Moment Mx
75 in/lb 25 in/lb
[8.5 Nm] [2.8 Nm]
Max Moment My
100 in/lb 35 in/lb
[11.3 Nm] [3.9 Nm]
Max Moment Mz
75 in/lb 25 in/lb
[8.5 Nm] [2.8 Nm]
Material: High Strength,Hard Coated aluminum bronze alloys, Steel
Weight: 5 oz [142 g]
Piston Diameter: 0.700 in [17.7 mm]
