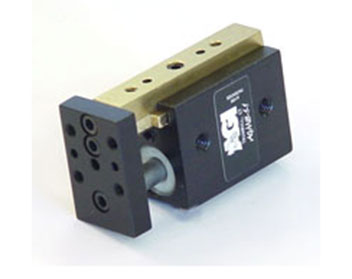

AGMS-1-2 Feed Escapement – Single Finger

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

Product Specifications

Design: Built-in air cylinder T-slot slide
Stroke: 1 inch [25.4 mm]
Thrust Force @ 80 PSI [5.5 BAR]
Extended: 15 lbs [66.7 N]
Retract: 13 lbs [57.8 N]
Recommended Speed: 2-12 in/sec [0.5-.3m/sec]
Pressure Range:
Low/High 20-120 PSI [1.4-8 BAR]
Temperature Range:
Low/High -20°/150°F [-28°/80°C]
Side Play: ± 0.001 [.03 mm]
Maximum Payload: 7 lbs [3.2 kg]
Material: High Strength, Aluminum Alloys, Bronze
Weight: 3.2 oz [90 g]
Piston Diameter: .50 in [12.7 mm]

Features & Benefits

  • T-Slot bearing support for the carriage and end plate offers superior load bearing performance throughout the stroke.
  • Compact lightweight unit with built-in air cylinder.
  • Piston seals are U-cup type for long service life.
  • Standard built-in stroke adjustment and stroke lock for precise, repetitive operation.
  • Hall Effect sensors are available to monitor stroke position.
  • Multiple mounting surfaces on the body and endplate with threaded and counterbored holes for easy mounting choices.
