AGT-5 Powered Slide Linear Thruster

Features & Benefits

  • Compact lightweight unit with replacable air cylinder.
  • Floating piston rod coupling eliminates cylinder binding..
  • Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
  • Optional stroke adjustment for precise, repetitive operation.
    Aluminum body and end blocks contain tapped holes and dowel pin holes for precision mounting or fixturing.
  • Standard end plate to stop shaft vibrations.
  • Proximity switches are available to monitor end of stroke position of the body.
  • Optional shock absorbers can be ordered for smooth operation.
  • Series AGT-5 is fully field repairable for cost savings and minimum down time. Repair kits are available for repairs or maintenance.

SKU: AGT-5 Categories: ,
DOWNLOAD PRODUCT PDF
DOWNLOAD CAD FILE

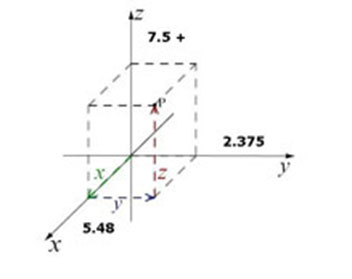

PRODUCT SPECIFICATIONS

Design: Replaceable air cylinder, linear bearings on
steel hardened shafts

Stroke:
12 in max. (1″ increments) [304.8 mm] [25.4 mm]

Thrust Force @ 80 PSI [5.5 BAR]
140 lbs (multiply force factor by input pressure in PSI)

Extended: 1.76 lbs [8 N]

Retract: 1.61 lbs [7 N]

Recommended Speed:
1-40 in/sec [XX-XX m/sec]

Pressure Range:
Low/High 20-120 PSI [1.4-8 BAR]

Temperature Range:
Low/High -20°/150°F [-28°/80°C]

Side Play: ± 0.001 [.03 mm]

Deflection: See Chart

Maximum Payload: 40 lbs [18.2 kg]

Material: High Strength, Aluminum Alloys, Steel Components

Weight:
7.0 lbs + 6.7 oz/in [3.2 kg + 5.2 g/mm]

Shaft Diameter: 3/4 in [19 mm]

Piston Diameter: 1 1/2 in [38 mm]
