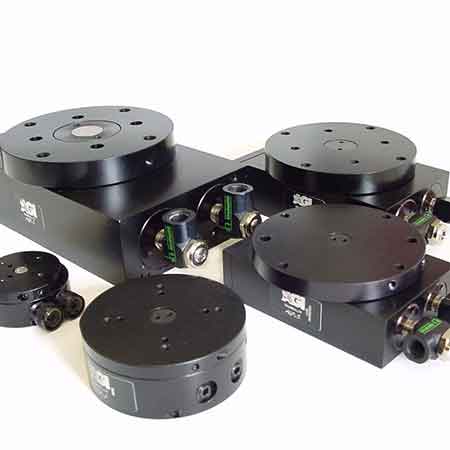

Pneumatic Rotary Actuators

Pneumatic low profile compact rotary actuators are ideal for payloads from 1 lbs (.44Kg) to 30 lbs (13.6Kg). The standard rotations available are 45, 90, or 180 degrees. Patented built in adjustable hard stops on output flange prevent pinion breakage. The AGR units have zero end-of-stroke backlash due to the drive pistons never bottoming out. This also results in full torque at start-up and throughout the rotation to the end of stroke. Dual bearing supported turn table provides an extremely compact package for tight space applications, and slip fit dowel pins make this a precise and repeatable pneumatic rotary actuator. Available options are: Mid stop and Manifold. To adjust the output flange: Back off the sensors a few turns if equipped. there are two small set screws (locks) and two larger set screws (rotation adjustment) on the edge of the output flange. Remove one small set screw from each side, under that is another that should just be loosened, now you can move the larger rotation adjustment. AGR_adjust-replace-sensors-rotary

.

  • Rotary Actuators

    Rotary Actuators

    Rack and pinion type double acting air cylinder with zero backlash hard stop output flange. Four way two position valve needed for proper function.
    Max Payload (kg) Max Payload (lbs) Torque (in/lb) Torque (Nm) Max Rotation (Degrees) Weight (kg) Weight (lbs) Options (Manifold) Options (Mid Stop)
    AGR-1 Rotary Actuator .441.05.56180.08.2See AGMnone
    AGR-2 Rotary Actuator 1.43171.9180.551.2See AGMAGR-2-P
    AGR-3 Rotary Actuator 3.68.0505.61801.43.0YesYes
    AGR-4 Rotary Actuator 6.815.010011.31802.35.0YesYes
    AGR-5 Rotary Actuator 13.630.0250291803.98.5YesNo
  • Download PDF Files
  • Download CAD Files
