AGP-6-OR – Gripper for Placing O-Rings
Features & Benefits
- Supported T-Slot jaws help prevent jaw breakage while offering superior load/bearing performance.
- Spreading and ejector jaws operate independently, allowing for exact timing of ring installation.
- True parallel jaw motion, compact design, and adjustable stroke allow for easy tooling.
PRODUCT SPECIFICATIONS
Design: Parallel, Double Acting, Synchronized Sealed Jaws
Stroke: Spread 0.6 in. adj. [15 mm]
Ejecting 0.25 in [6.3 mm]
Gripping Force Per Jaw
Spreading jaws have 14-55 lbs. force [each] @80 psi *
Ejector jaws have 80 lbs. force [combined] @80 psi.
Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]
Pressure Range:
Low/High 30-100 PSI [2-7 BAR]
Temperature Range:
Low/High -20°/180°F [-28°/80°C]
Side Play: ± 0.001 [.03 mm]
Repeatability from center: ± .002 [.06 mm]
Loading Capacity: Static – Dynamic
Max Tensile T
60 lbs 20 lbs
[260 N] [88 N]
Max Compressive C
60 lbs 20 lbs
[260 N] [88 N]

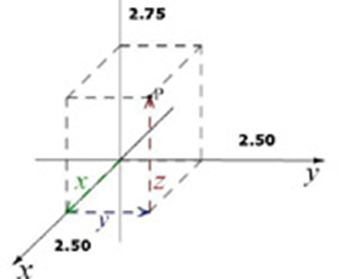

Max Moment Mx
100 in/lb 25 in/lb
[11 Nm] [2.7 Nm]
Max Moment My
120 in/lb 30 in/lb
[13 Nm] [3.3 Nm]
Max Moment Mz
100 in/lb 25 in/lb
[11 Nm] [2.7 Nm]
Material: High Strength,Hard Coated
aluminum bronze alloys, Steel
Weight: 1.25 lbs [.56 Kg]
Piston Diameter: 1.00 in [25.4 mm]
* [ Depending where in the cycle of stroke it is measured. The farther the spread or opening of jaws, the stronger the force. This exponential force {curved} applies to all AGP-OR Grippers. Also, keep in mind these are ‘no’-friction numbers. Every application will entertain a different coefficient of kinetic friction depending on finger design, {height & length}, and should be taken into consideration during design stages of assembly equipment ].
Product Videos
3-D Interactive Preview
Competitor Comparison
Compare the AGP-6-OR to its competitors in the table below and see why it’s the clear choice for professionals looking for the best.
| Attribute | AGI Automation AGP-6-OR | Schunk – PGR_403 O-ring Gripper | Effecto PMIE6 | Zimmer – GS65-B |
| Number of Fingers | 6 | 6 | 6 | 6 |
| Gripper Type | Parallel, Double Acting, Synchronized Sealed Jaws | Double Acting, One-Way Acting | Internal and external | Two single-acting pneumatic cylinders |
| Gripping Force Per Jaw | Spreading jaws have 14-55 lbs. force [each] @80 psi * Ejector jaws have 80 lbs. force [combined] @80 psi. |
Triple Jaw A: 45N | “A” fingers 31.6 mm “B” fingers 50.0 mm |
45.0N |
| Pressure Range | Low/High 30-100 PSI [2-7 BAR] | 4 – 8 bar | 4 – 8 bar | 4 – 8 bar |
| Actuation Method | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Material | High Strength,Hard Coated aluminum bronze alloys, Steel |
Housing material: Aluminum Base jaw material: Steel |
Hard-coated aluminum alloy | Hard-coated aluminum alloy |
| Weight | 1.25 lbs [.56 Kg] | 1.35 kg | 1.95 kg | 0.53 [kg] |
| Loading Capacity | Static – Dynamic | Not specified | Not specified | Not specified |
| Warranty | Not Specified | 24 months | Not specified | 12 months |
| Made in USA | Yes, 100% made in America | Not USA made. Made in Germany | Not USA made. Made in Italy | Not USA made. Made in Germany |
