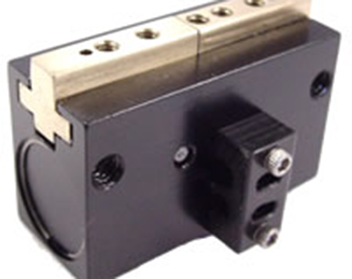

AGLP-2 T-Slot Bearing Series Parallel Gripper

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

Product Specifications

Design: Parallel, Double Acting, Synchronized Jaws

Stroke: 0.50 in [12.7 mm]

Gripping Force @ 80 PSI [5.5 BAR]
Closing: 10 lbs [44 N]
Opening: 10 lbs [44 N]

Time:
Close: 0.12 sec [0.12 sec]
Open: 0.12 sec [0.12 sec]

Pressure Range:
Low/High 10-100 PSI [.7-7 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play: ± 0.001 [.03 mm]

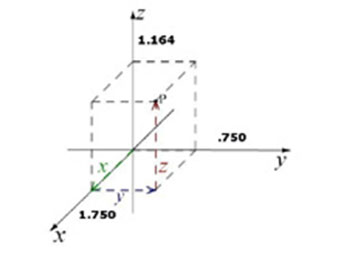

Loading Capacity: Static – Dynamic

Max Tensile T
65 lbs 20 lbs
[289 N] [89 N]

Max Compressive C
65 lbs 20 lbs
[289 N] [89 N]

Max Moment Mx
60 in/lb 15 in/lb
[6.7 Nm] [1.6 Nm]

Max Moment My
60 in/lb 20 in/lb
[6.7 Nm] [2.2 Nm]

Max Moment Mz
60 in/lb 15 in/lb
[6.7 Nm] [1.6 Nm]

Material: High Strength,Hard Coated aluminum bronze alloys, Steel

Weight: 2 oz [56 g]

Piston Diameter: .625 in [15.8 mm]

Features & Benefits

  • Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance.
  • Rugged rack and pinion synchronizing.
  • High gripping force to weight ratio.
  • Compact Design with long stroke.
  • True parallel jaw motion for easy tooling.
  • Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulations.
  • Piston seals are quad ring type for long service life.
  • Hall effect sensors are available to monitor open and closed positions of the jaws.
  • AGLP is fully field repairable for cost savings and minimum down time.
  • Gripper can be ordered with 2 different stroke on the same size body.

3-D Interactive Preview
