AGP-43

AGP-43 Three Jaw Parallel Gripper T-Slot Bearing Series

Features & Benefits

  • Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance.
  • High gripping force to weight ratio
  • Compact design with long stroke
  • True parallel jaw motion for easy tooling
  • Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulations..
  • Pistons seals are quad ring type for long service life.
  • Hall effect sensors are available to monitor open and closed position of the jaws.
  • AGP is fully field repairable for cost savings and minimum down time
    Multiple mounting surfaces on jaw for easy tooling.
  • Optional stripper plate ensures part preload in location upon release.

DOWNLOAD PRODUCT PDF
DOWNLOAD CAD FILE

PRODUCT SPECIFICATIONS

Design: Parallel, Double Acting, Synchronized Jaws

Stroke: .40 in [10.2 mm]

Gripping Force @ 80 PSI [5.5 BAR]
Closing: 80 lbs [355 N]
Opening: 86 lbs [382 N]

Time:
Close: 0.22 sec [0.22 sec]
Open: 0.22 sec [0.22 sec]

Pressure Range:
Low/High 30-120 PSI [2-8 BAR]

Temperature Range:
Low/High -20°/180°F [-28°/80°C]

Side Play:
± 0.001 [.03 mm]

Repeatability from Center:
± 0.002 [.06 mm]

Loading Capacity: Static – Dynamic

Max Tensile T
760 lbs 270 lbs
[3380 N] [1200 N]

Max Compressive C
760 lbs 270 lbs
[3380 N] [1200 N]

Max Moment Mx
760 in/lb 270 in/lb
[85.8 Nm] [30.5 Nm]

Max Moment My
760 in/lb 270 in/lb
[85.8 Nm] [30.5 Nm]

Max Moment Mz
300 in/lb 100 in/lb
[34 Nm] [11.2 Nm]

Material: High Strength,Hard Coated aluminum bronze alloys, Steel

Weight: 1.0 lbs [5 kg]

Piston Diameter: 2.0 in. [50.8 mm]

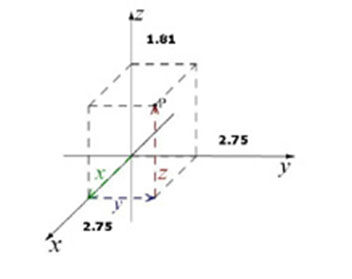

3-D Interactive Preview
