Miniature Pneumatic Linear Slide fit in tight spaces

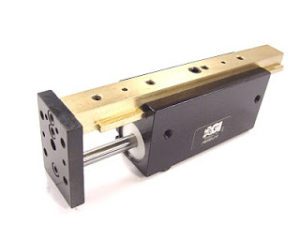

The AGMS compact linear slide air cylinder offer a high performance solution for linear motion applications that require short strokes coupled with compact boundary dimensions and high loading capability. The compact size of this pneumatic miniature linear actuator is ideal for use in tight spaces needing large payloads.
New AGMS series mini slide actuators from AGI provide a load-carrying capacity of 3 to 28 lbs., yet the total height of the assembly is only 0.813 inches, making this one of the smallest commercially available pneumatic linear actuator.
This precision mini-slide has a T-slot bearing design that is supported the full length of the body to carry heavy loads. AGMS straight-line design offers High moment load and high accuracy in a compact lightweight package. It features a lightweight aluminum base that is hard anodized and a carriage made from Ampco 18 aluminum-bronze. Standard mounting holes on the slide carriage and endplate make it easy to attach the mechanism being moved and the unit’s base offers four holes for mounting. Stroke adjustments and locks are standard on end of extend and retract of stroke.
The Mini-Linear Actuator is part of a new product line that offers flexible configurations. The Pneumatically actuated mini slides have two bore sizes .5 and also a .75 inch available in .5, 1.0, 1.5 and 2.0 inch strokes. Optional switch kits allow the use of inductive proximity switches for easy interfacing to electrical controls.
