AGA-43 Angular Gripper – 180° Three Jaw
Features & Benefits
- Grippers provide up to 180º of angular jaw travel allowing the jaws to completely retract from the work area eliminating another required axis of travel.
- High gripping force to weight ratio.
- Compact design with long, adjustable stroke.
- Jaw rotations can be adjusted from 0-90º to allow the gripper to be custom fit to each application.
- Units are permanently lubricated for non-lube air operation, allowing for compliance with OSHA regulation.
- Proximity sensors are available to monitor open and closed position of the jaws.
- AGA is fully field repairable for cost savings and minimum down time.
- The gripper body has two mounting surfaces with dowel pin holes to provide accurate mounting in a variety of positions.
PRODUCT SPECIFICATIONS
Design: 3-Jaw Angular
Stroke: 0-180° Adjustable
Gripping Force @ 80 PSI [5.5 BAR]
Closing: 60 lbs [266 N]
Open: 55 lbs [244 N]
Time:
Close: 0.4 sec [0.4 sec]
Open: 0.4 sec [0.4 sec]
Pressure Range:
Low/High 10-120 PSI [.7-8 BAR]
Temperature Range:
Low/High -20°/180°F [-28°/80°C]
Side Play: ± 0.001 [.03 mm]
Repeatability from Center: ± 0.002 [.06 mm]

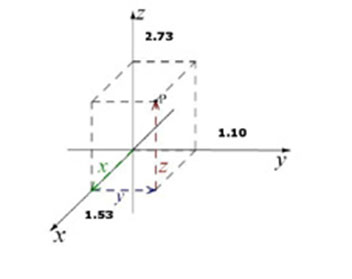

Loading Capacity: Static – Dynamic
Max Tensile T
90 lbs – 40 lbs
[400 N] – [177 N]
Max Compressive C
90 lbs – 40 lbs
[400 N] – [177 N]
Max Moment Mx
150 in/lb – 430 in/lb
[17 Nm] – [4.5 Nm]
Max Moment My
180 in/lb – 45 in/lb
[20.3 Nm] – [5 Nm]
Max Moment Mz
150 in/lb – 40 in/lb
[17 Nm] – [4.5 Nm]
Material: High Strength, Hard Coated
aluminum bronze alloys, Steel
Weight: 3.25 lb [1.5 kg]
Piston Diameter: 1.5 in [38 mm]
