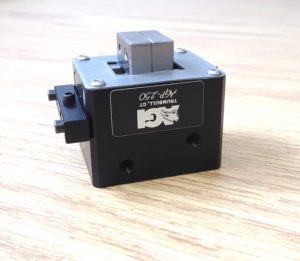

AGP-250 Double-Guided Wedge Parallel Gripper

Features & Benefits

  • Ultra high gripping force to weight ratio.
  • True parallel jaw motion for easy tooling.
  • Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
  • Piston seals are quad-ring type for long service life.
  • Additional side mounting holes and side air ports for optional mounting and porting.
  • Proximity switches are available to monitor open and closed position of the jaws.
  • Series AGP-250 is fully field repairable for cost savings and minimum down time.

DOWNLOAD PRODUCT PDF
DOWNLOAD CAD FILE

PRODUCT SPECIFICATIONS

Design: Parallel, Double Acting, Synchronized Jaws

Stroke: 0.25 in [6.3 mm]

Gripping Force @ 80 PSI [5.5 bar]:
Closing: 20 lbs [89 N]
Opening: 22 lbs [97 N]

Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]

Pressure Range:
30-120 PSI [2-8 bar]

Temperature Range:
-20°-180°F [-28°-80°C]

Side Play:
± 0.001 [0.03 mm]

Repeatability from center:
± .002 [0.06 mm]

Loading Capacity: Static – Dynamic

Max Tensile T
100 lbs 15 lbs
[444 N] [66.7 N]

Max Compressive C
150 lbs 25 lbs
[667 N] [111 N]

Max Moment Mx
90 in/lb 15 in/lb
[10 Nm] [1.7 Nm]

Max Moment My
90 in/lb 15 in/lb
[10 Nm] [1.7 Nm]

Max Moment Mz
90 in/lb 15 in/lb
[10 Nm] [1.7 Nm]

Material: High Strength, Hard Coated aluminum bronze alloys, Steel

Weight: 4 oz. [113 g]

Piston Diameter: 1.00 in [25.4 mm]

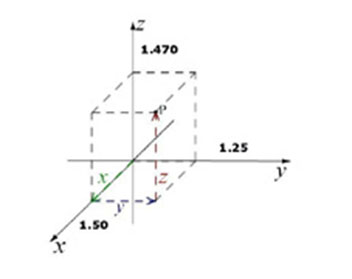

3-D Interactive Preview
