Pneumatic Rotary Actuators offers Flange Stop Design to reduce internal drive component wear of rack and pinion. AGI a leader in motion control technology, introduces the latest technological advancement in pneumatic rotary actuators. The Series AGR Rotary Actuator features extremely ultra thin profile and bearing supported flange provide an extremely compact package for tight space…
Small yet rugged pneumatic double acting parallel gripper delivers rugged performance in a small package . These two grippers boast S-7 tool steel jaws that ride on Armoloy TDC shafts. The AGP-187, 250 are the industry standard, supply a high grip force to weight ratio and made for high production rate reliable service life. AGI’s…
How Does Pneumatic Cylinder Actuators work? i.e.: Grippers, Linear Actuators and Rotary Actuators, they convert energy (compressed air or pressurized oil) into linear or rotary motion. Types of pneumatic actuators include: Pneumatic Gripper Rotary Actuators Linear Actuators Robotic Tool Changers Robotic Load Limiter Multi Motion Actuators O-ring Automated Assembly Feed Escapements A pneumatic actuator consists…
Pneumatic Powered Slide that provides smooth linear motion due to the precision ball bearings riding on hardened ground shafts. The aluminum body and end blocks contain tapped holes and dowel pin holes for precision mounting. AGS base slides have a built in air cylinder that reduces the overall length or footprint of the unit. Bore…
Magnetically coupled linear actuator slides have no mechanical connection between the carriage body and piston resulting in a fully enclosed piston that prevents contaminants from escaping. AGSL linear actuator incorporates an anodized aluminum carriage that is guided on precision linear bearings that ride on hardened precision ground shafts to move smoothly while supporting the tool…
The AGMS compact linear slide air cylinder offer a high performance solution for linear motion applications that require short strokes coupled with compact boundary dimensions and high loading capability. The compact size of this pneumatic miniature linear actuator is ideal for use in tight spaces needing large payloads. New AGMS series mini slide actuators from…
The AGA Series Angular Gripper Actuator features four new models that have three jaws. The gripper jaws 180 degree opening is suited for applications which must be performed within a limited work area. The AGA-23, 33, 43 and 53 series have stroke-limiting screws to adjust the stroke between 0 and 180 degree. The four sizes have…
The AGPS fixed jaw parallel grippers offer a unique gripping solution for applications that require a zero point for exact part pick up or placement and high loading capability. The compact size of this pneumatic gripper linear actuator is ideal for use in tight spaces needing large payloads with a quick clamping cylinder. The one-piece…

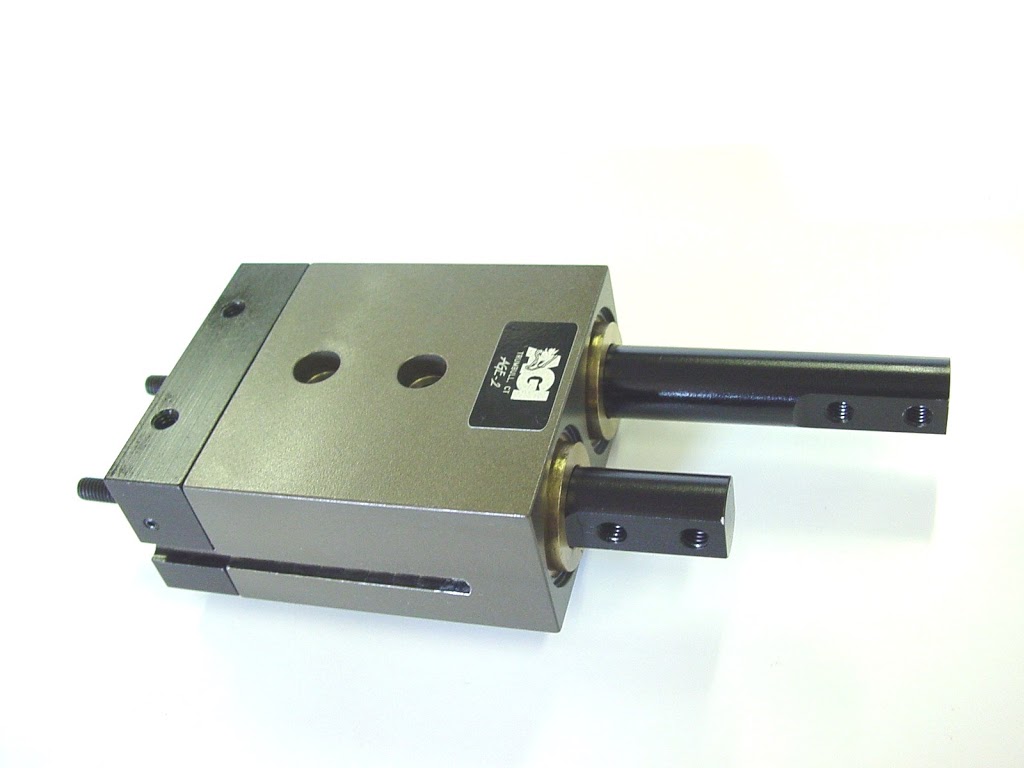

Pneumatic feed escapement actuator is ideal for singulating and release of individual parts from hoppers, conveyors, vibratory feeder bowls, tracks and magazines. These compact long stroke Linear actuators escapements are internally sequenced. The cross porting makes sure both rods are extended before either rod can retract ensuring positive part feeding. The AGI escapements have an…
