AGMS-1-4 Feed Escapement – Single Finger

Product Inquiry

  • This field is for validation purposes and should be left unchanged.

Download Product PDF
Download CAD File

Product Specifications

Design: Built-in air cylinder T-slot slide

Stroke: 2.0 in [50.8 mm]

Thrust Force @ 80 PSI [5.5 BAR]

Extended: 15 lbs [66.7 N]

Retract: 13 lbs [57.8 N]

Recommended Speed: 2-12 in/sec [0.5-.3m/sec]

Pressure Range:
Low/High 20-120 PSI [1.4-8 BAR]

Temperature Range:
Low/High -20°/150°F [-28°/80°C]

Side Play: ± 0.001 [.03 mm]

Maximum Payload: 18 lbs [81.6 kg]

Material: High Strength, Aluminum Alloys, Bronze

Weight: 5 oz [142 g]

Piston Diameter: .50 in [12.7 mm]

Features & Benefits

  • T-Slot bearing support for the carriage and end plate offers superior load bearing performance throughout the stroke.
  • Compact lightweight unit with built-in air cylinder. Piston seals are U-cup type for long service life.
  • Standard built-in stroke adjustment and stroke lock for precise, repetitive operation.
  • Hall Effect sensors are available to monitor stroke position.
  • Multiple mounting surfaces on the body and endplate with threaded and counterbored holes for easy mounting choices.

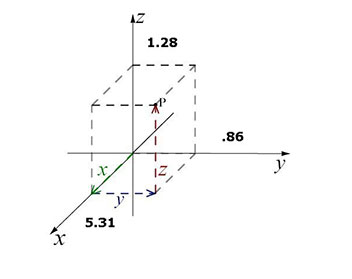

3-D Interactive Preview
